Stock ticker

A live stock price on your wall that updates itself all day — not a phone app you have to unlock and refresh. The stocks.ticker widget, provided by the stocks package in the led-ticker-plugins monorepo (type = "stocks.ticker"), shows live prices — symbol, price, change, and a rolling sparkline — auto-picking a scrolling crawl, a held card, or a full dashboard to fit your sign’s real width. Prices come from Finnhub by default (US equities, free tier) or, with one config field, from Twelve Data (provider = "twelvedata") for stocks and forex and crypto off a single free key. The same package also contributes a stocks.quote value-token source and a stocks.trend color provider, so a live, trend-colored price can drop into any message widget too — that’s the part a phone app or a standalone ticker gadget can’t do: your stock feed sharing the same rotation as everything else on the sign.

The default Finnhub path is US-listed equities-only — config-load declines any symbol containing / (the conventional forex/crypto pair separator, e.g. "EUR/USD") under provider = "finnhub", the default. Set provider = "twelvedata" and the same symbols list can mix stocks, forex ("EUR/USD"), and crypto ("BTC/USD") — the / is what routes the asset class; see Multi-asset via Twelve Data below and Data sources for the full picture. A few places this shows up: a home trading desk keeping a handful of positions in view, an office or lobby sign mixing market data into the daily rotation, or a storefront running its own stock as a conversation piece — the sample symbol used throughout this page, DKS, is Dick’s Sporting Goods, a deliberate storefront hint.

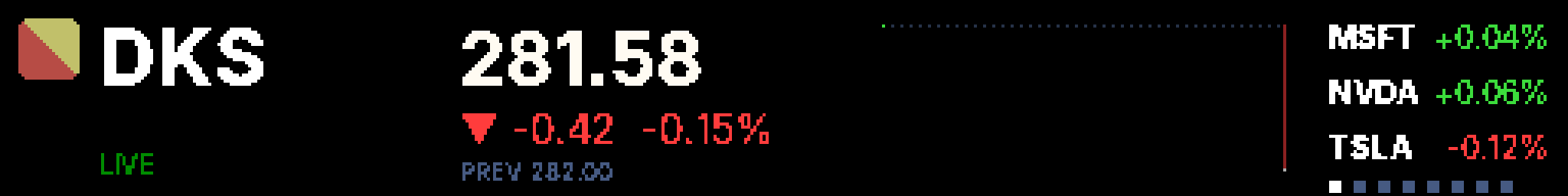

dashboard layout on a long panel: hero symbol, price, and sparkline on the left, a scrolling watch column of the rest of the list, and a pulsing LIVE chip — a self-updating stock dashboard on your sign.

Requires led-ticker-core >= 4.9.

Tip

Want to see every layout, the price-flash, and the LIVE-chip pulse right now? Set demo = true and skip to Try it in demo mode below — no Finnhub token, no network call, about two minutes. Every GIF on this page was rendered that way; live mode looks identical, it just pulls real quotes from Finnhub instead of a synthetic random walk.

Install the plugin first (steps just below this snippet), then drop it into a section:

[[playlist.section]]
mode = "slideshow"
hold_time = 5

[[playlist.section.widget]]
type = "stocks.ticker"
symbols = ["DKS", "MSFT", "NVDA"]

To install the plugin on a Docker deploy, add its line to the plugin manifest and restart:

# First plugin? Create your manifest from the example:
cp -n config/requirements-plugins.example.txt config/requirements-plugins.txt
# Add the package (one name per line), then restart:
echo "led-ticker-stocks==0.6.0" >> config/requirements-plugins.txt
docker compose restart

Other install paths (web UI Store tab, dev checkout) are on the Plugins page.

Try it in demo mode

Set demo = true to render a synthetic random-walk feed instead of calling Finnhub — no FINNHUB_API_TOKEN needed, no internet required:

[[playlist.section]]
mode = "slideshow"
hold_time = 5

[[playlist.section.widget]]
type = "stocks.ticker"
symbols = ["DKS", "MSFT", "NVDA", "TSLA"]
demo = true

This is the fastest way to see every layout, the price-flash, and the LIVE-chip pulse before you have a Finnhub token — or on a dev machine with no network access.

One ticker, every sign

layout (omit it — the default) resolves at draw time from the sign’s real physical width, so the same config works unmodified whether it’s driving a narrow bar, a square-ish panel, or a long dashboard-shaped sign. You can also pin a layout explicitly with layout = "crawl" / "card" / "dashboard".

A small ~160×16 bar → crawl

crawl layout: a single continuously scrolling line per symbol — SYM, price, and the ▲/▼ change, trend-colored.

[[playlist.section]]
mode = "ticker"

[[playlist.section.widget]]
type = "stocks.ticker"
symbols = ["DKS", "MSFT", "NVDA", "TSLA"]
demo = true
update_interval = 1

A single-line, continuously-scrolling crawl through every configured symbol. This is the layout on a narrow sign where there’s no room for a held card.

A wide ~256×64 panel → card

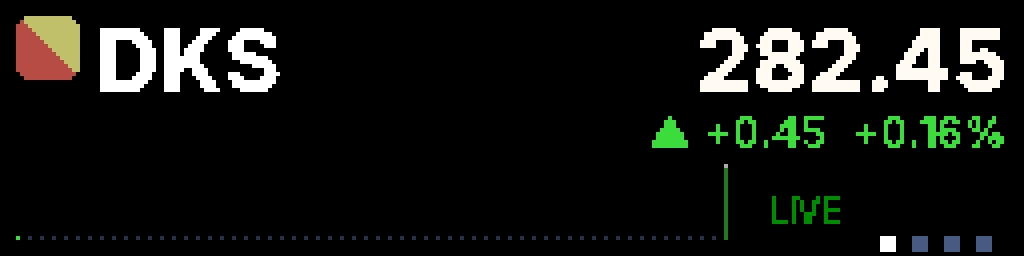

card layout: one hero card per symbol — brand chip, symbol, big price, ▲/▼ change line, sparkline, a pulsing LIVE chip, and paging dots — held and rotating.

[[playlist.section]]
mode = "slideshow"
hold_time = 5

[[playlist.section.widget]]
type = "stocks.ticker"
symbols = ["DKS", "MSFT", "NVDA", "TSLA"]
demo = true
update_interval = 1

One symbol at a time, held and rotating: a hero price card with a sparkline, a state chip, and paging dots.

A long ~512×64 panel → dashboard

Same config, just a longer symbol list on a wider physical panel — see the hero GIF at the top of this page. The dashboard layout adds a scrolling watch column of the rest of the list alongside the held hero card, so a long sign can show one symbol in detail while still surfacing the others.

[[playlist.section]]
mode = "slideshow"
hold_time = 5

[[playlist.section.widget]]
type = "stocks.ticker"
symbols = ["DKS", "MSFT", "NVDA", "TSLA", "AMZN", "GOOGL", "META", "AMD"]
demo = true
update_interval = 1

One config; the layout auto-selects from the sign’s real width — no layout field needed. There’s no hard cutoff to memorize: a narrow ~160px-wide sign gets crawl, a mid-width ~256px sign gets card, and anything ~400px and wider gets dashboard.

Embed a live price anywhere

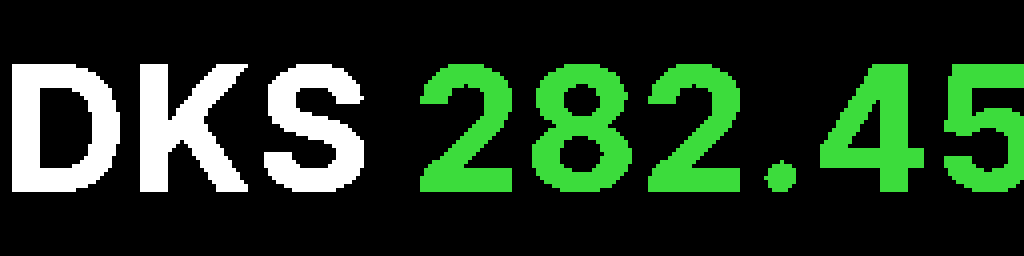

a message widget reading "DKS <price> <change%>" — "DKS " stays white (the message font_color) while the price and percent render green or red by the day trend.

Declare a stocks.quote source once, then reference its :id: token in any message widget’s text:

[[source]]
id = "stocks.dks"
type = "stocks.quote"
symbol = "DKS"
interval = 1
format = "{price} {pct}"
color = {style = "stocks.trend", symbol = "DKS"}

[[playlist.section]]
mode = "slideshow"
hold_time = 8

[[playlist.section.widget]]
type = "message"
text = "DKS :stocks.dks:"
font = "Inter-Bold"
font_size = 44
font_threshold = 80
font_color = [255, 255, 255]

The :stocks.dks: token renders in the source’s own color — here the stocks.trend provider, which tints green when the symbol is up on the day and red when it’s down — while the literal "DKS " text keeps the message’s font_color. That’s mixed colors on one line, in your own font and layout, not a fixed widget appearance.

Note

font = "Inter-Bold" / font_size = 44 above are hi-res — they need a scaled sign (default_scale > 1, e.g. bigsign). On a scale-1 panel (e.g. smallsign), drop both fields and let the widget fall back to its default BDF font; the mixed-color :stocks.dks: token still works, just rendered in the smaller bitmap font.

A few things to know before you reach for this:

• Requires led-ticker-core >= 4.14.0. Source-declared token color is a core capability (see Value tokens → Token color); on an older core the token still resolves, but it renders in the message’s own font_color instead of the source’s.
• message widgets only, for now. two_row and the text overlay on gif/image widgets don’t read a source’s color yet — the token there always renders in the widget’s own color. This is a documented, planned follow-up on the core side, not a stocks-plugin limitation.
• The symbol needs a feeder. stocks.trend and stocks.quote both read a shared, process-wide quote cache — they don’t fetch on their own. Something in the same config has to be feeding DKS into that cache: either a stocks.quote source for that symbol (as above) or a stocks.ticker widget that includes it in its symbols list. Reference a symbol nobody feeds and the token still resolves (a placeholder, then a flat zero-change price), just never colored by real trend data.

See Value tokens for the general :id: token mechanism and Color providers for the other font_color/color forms stocks.trend sits alongside.

Live stocks in a real playlist

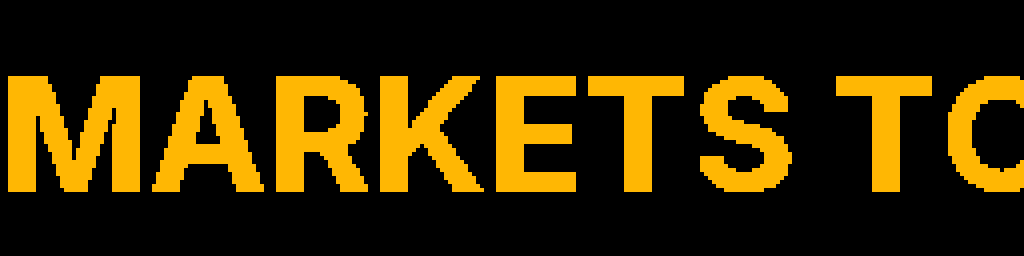

a mixed rotation: a welcome message ("MARKETS TODAY"), the live stock card, then a two_row header with the symbol on top and an embedded trend-colored price on the bottom.

Stocks widgets are just widgets — they sit in the same rotation as your everyday content, not a special standalone mode:

[[source]]
id = "stocks.dks"
type = "stocks.quote"
symbol = "DKS"
interval = 1
format = "{price} {pct}"

[[playlist.section]]
mode = "slideshow"
hold_time = 3
[[playlist.section.widget]]
type = "message"
text = "MARKETS TODAY"
font = "Inter-Bold"
font_size = 40
font_threshold = 80
font_color = [255, 183, 3]

[[playlist.section]]
mode = "slideshow"
hold_time = 4
[[playlist.section.widget]]
type = "stocks.ticker"
symbols = ["DKS"]
demo = true
update_interval = 1

[[playlist.section]]
mode = "slideshow"
hold_time = 4
[[playlist.section.widget]]
type = "two_row"
top_text = "DKS"
top_font = "Inter-Bold"
top_font_size = 24
top_color = [255, 255, 255]
bottom_text = ":stocks.dks:"
bottom_font = "Inter-Bold"
bottom_font_size = 24
bottom_font_threshold = 80
bottom_color = {style = "stocks.trend", symbol = "DKS"}

Three sections, each on mode = "slideshow": a plain welcome message, the live stocks.ticker card, and a two_row header where the bottom row is an embedded :stocks.dks: token colored directly by bottom_color — the same per-row color field described on Color providers. Your regular content and a live market feed share one rotation with no special wiring between them. (The font/font_size fields above are hi-res too — see the scale-1 note if you’re on a small panel.)

It’s alive

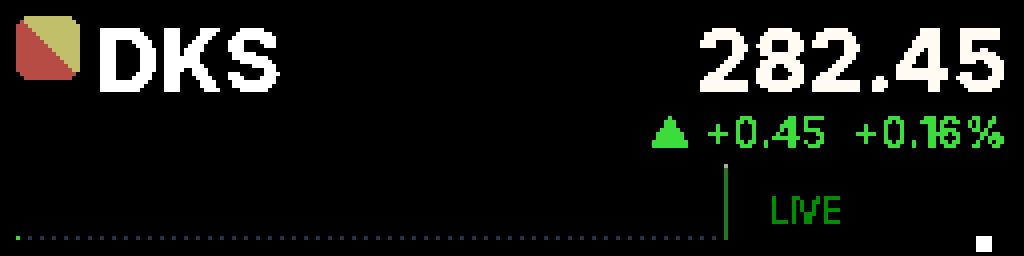

one symbol held long enough to see the animation layer: the price flashing whiter on each change, the LIVE chip breathing, and the sparkline's leading dot twinkling.

[[playlist.section]]
mode = "slideshow"
hold_time = 13

[[playlist.section.widget]]
type = "stocks.ticker"
symbols = ["DKS"]
demo = true
update_interval = 1

Held layouts (card, dashboard) aren’t a static snapshot redrawn every poll — three things animate continuously, frame by frame:

• Price flash. When a symbol’s price changes, the price line flashes whiter for a moment before decaying back to its trend color — a Bloomberg-style “something just moved” cue, not just a number that jumps.
• LIVE-chip pulse. The state chip in the corner reads LIVE (green) while the market is open, PRE (amber) or AH (violet) outside regular hours, and CLSD (red, dimmed) when closed. Only LIVE breathes — a slow brightness pulse that’s the visual “this widget is actually polling,” the same idea as the busy-light overlay’s corner dot.
• Sparkline endpoint pulse. The rightmost point of the rolling sparkline twinkles every frame regardless of market state, so the chart itself reads as alive even between price updates.

Multi-asset via Twelve Data

Add one field — provider = "twelvedata" — and the same widget mixes stocks, forex, and crypto in one symbols list, all off a single free key:

[[source]]
id = "eurusd"
type = "stocks.quote"
provider = "twelvedata"
symbol = "EUR/USD"
format = "{price}"

[[playlist.section]]
mode = "slideshow"
hold_time = 5

[[playlist.section.widget]]
type = "stocks.ticker"
provider = "twelvedata"
symbols = ["AAPL", "EUR/USD", "BTC/USD"]

• The / routes the asset class, no exchange prefix. "AAPL" is a stock, "EUR/USD" is forex, "BTC/USD" is crypto — Twelve Data infers the type from the symbol shape alone.
• Per-symbol market state. Each symbol carries its own state chip — BTC/USD can read LIVE around the clock while an after-hours AAPL reads CLSD, in the same rotation.
• Auto-formatting needs no config. Prices pick their decimal places from magnitude — forex (EUR/USD ~1.08) renders at 4 decimals, equities and larger crypto values render at 2 with thousands separators (65,432.10). The decimals field on stocks.quote overrides this per source for the rare case you want something else.
• The rate just works. The shared cache detects your Twelve Data key’s actual per-minute limit at boot and throttles to it — free-tier and a paid key both just work, with no rate field to tune.
• Get a free key at twelvedata.com/pricing and put it in .env as TWELVEDATA_API_KEY — never in config.toml (env-only, same convention as FINNHUB_API_TOKEN).

Note

Demo mode (demo = true) synthesizes a generic random-walk price for every symbol, so it can’t show a true forex 4-decimal quote or crypto’s larger magnitude — the GIFs above were all rendered against Finnhub-shaped equity demo data. See Data sources below for the full Twelve Data rundown, including the delayed-data caveat on the free tier.

Options

stocks.ticker widget

Field	Type	Default	Notes
provider	"finnhub" / "twelvedata"	"finnhub"	Which quote provider to poll. "finnhub" covers US equities; "twelvedata" adds forex and crypto — see Data sources.
symbols	list of str	required	Ticker symbols, e.g. ["DKS", "MSFT"]. A symbol containing / (e.g. "EUR/USD") is rejected at config-load under the default provider = "finnhub"; valid under provider = "twelvedata" — see Data sources.
layout	"crawl" / "card" / "dashboard"	auto	Explicit override. Omit it to auto-select from the sign’s real physical width — see One ticker, every sign.
green_up	bool	true	When true (default), a positive change renders green and a negative change renders red. Set false to swap the two colors (some non-US market conventions); the ▲/▼ arrow direction itself never changes.
update_interval	int, seconds	60	Base poll cadence (both providers). The actual cadence widens automatically to at least len(symbols) + 1 seconds — see Data sources for why.
padding	int, pixels	6	End padding on the crawl layout only (spacing before the next symbol scrolls in); no effect on card/dashboard.
demo	bool	false	Render a synthetic random-walk feed instead of calling Finnhub. No token needed — see Try it in demo mode above.

stocks.quote source

Field	Type	Default	Notes
symbol	str	required	The ticker to track, e.g. "DKS". Rejected at config-load if it contains / (e.g. "EUR/USD") under the default provider = "finnhub"; valid under provider = "twelvedata".
provider	"finnhub" / "twelvedata"	"finnhub"	Which quote provider this token reads. Same Data sources tradeoffs as the widget’s provider field.
format	str	"{price}"	A Python format string over: price, change, pct, arrow (▲/▼/·), symbol, prev, high, low, day_range. Validated at config-load — an unknown field name or malformed format raises.
decimals	int	auto	Fixed decimal places for price/change/prev/high/low. Unset (the default): Finnhub always shows 2; Twelve Data auto-picks by magnitude (forex ~4, sub-$1 ~5, equities/larger crypto 2) — see Multi-asset via Twelve Data.
placeholder	str	"…"	Shown until the first quote arrives.
interval	int, seconds	—	Inherited from the general polled-source mechanism — how often this source’s own fetch runs. See Value tokens → Live (polled) sources.
color	any color provider	— (inherits host widget’s color)	Also inherited — see Value tokens → Token color. {style = "stocks.trend", symbol = "..."} is the natural pairing for a stocks token.

stocks.trend color provider

Used as a font_color (on message) or color (on a [[source]] block, or top_color/bottom_color on two_row):

Field	Type	Default	Notes
symbol	str	required	Which symbol’s day-change to track — a plain ticker or a / forex/crypto pair (e.g. "EUR/USD") both work here, since this provider only reads the shared cache. Must already be fed by a stocks.quote source or stocks.ticker widget — see Embed a live price anywhere.
up	[r, g, b]	[60, 220, 60] (green)	Color when the symbol is up on the day.
down	[r, g, b]	[255, 60, 60] (red)	Color when the symbol is down on the day.
flat	[r, g, b]	[150, 150, 150] (gray)	Color when unchanged or no data yet.
green_up	bool	true	Set false to swap up/down, matching the same knob on stocks.ticker.

font_color = {style = "stocks.trend", symbol = "DKS", up = [0, 255, 0], down = [255, 0, 0]}

Data sources

The plugin polls one of two providers, chosen by provider (default "finnhub"). Every stocks.ticker widget and stocks.quote source in a config shares one process-wide quote cache — a symbol is fetched once per poll cycle no matter how many widgets/tokens reference it, and adding a second widget or token for a symbol you’re already tracking costs nothing extra. Use one provider consistently across a config: the first widget/source to start the shared cache decides which provider handles every symbol in the process.

Finnhub (default)

Quotes come from Finnhub, a market-data API with a free tier, for US equities:

1. Sign up free at finnhub.io/register.
2. Copy the API key from your Finnhub dashboard.
3. Add it to the .env file that sits next to your config — not config.toml itself: FINNHUB_API_TOKEN=your_key.

Never put the token in config.toml — a token field in a widget block is accepted for backward compatibility but silently ignored; the token always resolves from the environment. No token, or demo = true on any stocks widget in the config, falls back to the offline demo feed described above.

A few behaviors worth knowing before you deploy against real markets:

• Equities only. Config-load declines a symbol that looks like a forex or crypto pair (contains /, e.g. "EUR/USD") under the default provider = "finnhub" — switch that symbol’s widget/source to provider = "twelvedata" instead (see Multi-asset via Twelve Data above).
• Cadence widens with your symbol list. The poll interval is max(update_interval, number_of_symbols + 1) seconds, recomputed every cycle — a long symbols list automatically slows down to stay inside Finnhub’s free-tier rate limit (60 requests/minute per token) rather than requiring you to hand-tune update_interval yourself.
• Closed-market behavior. When the market is closed, prices hold at the last fetched close instead of going blank or re-fetching every cycle — a symbol still gets exactly one fetch after a fresh boot (to grab that last close), then holds until the market reopens.

Twelve Data (provider = "twelvedata")

Set provider = "twelvedata" on a stocks.ticker widget or stocks.quote source to poll Twelve Data instead — one free key covering stocks, forex, and crypto:

1. Get a free key at twelvedata.com/pricing.
2. Add it to .env, next to your config, as TWELVEDATA_API_KEY=your_key — never in config.toml (same env-only convention as FINNHUB_API_TOKEN).

Each quote carries its own market-open flag, so a mixed symbols list shows correct per-symbol state — crypto can read LIVE around the clock while an after-hours equity in the same list reads CLSD. You don’t set a rate: on first use, the shared cache calls Twelve Data’s /api_usage endpoint to detect your key’s actual per-minute limit (free tier is 8 requests/minute) and throttles to it automatically; a paid key is detected and used at its own higher limit with no config change, and an unexpected 429 ratchets the rate down further for the rest of the session as a safety net. Free-tier data is delayed roughly 1–15 minutes — fine at sign-refresh cadence, not for tick-by-tick trading.

If it doesn’t work

• Nothing shows up at all — a blank panel. Most likely the widget block isn’t nested inside a [[playlist.section]] — a bare [[playlist.section.widget]] with no section parent yields zero sections and a blank sign; every runnable snippet on this page shows the wrapper. Also worth ruling out: the stocks plugin isn’t installed yet (see the install step near the top of this page) — though a missing plugin usually surfaces as unknown widget type 'stocks.ticker' at config-load rather than a silent blank panel.
• A :stocks.xyz: token shows no color — it’s whatever color the widget already was. Either the symbol has no feeder in this config (add a stocks.quote source or include it in a stocks.ticker widget’s symbols), or you’re on core < 4.14.0 (source-declared token color needs core >= 4.14.0 — see Embed a live price anywhere).
• The whole line renders in one flat color, not per-token. Same core-version check as above — an older core resolves the token’s text correctly but ignores the source’s color field entirely.
• A symbol shows an em-dash (—) price, or a stocks.trend token stays gray. The symbol has no data yet (first fetch still in flight) or the provider returned nothing for it — double-check the symbol is spelled correctly and is real and currently listed (or, for a / pair, that provider = "twelvedata" is set).
• stocks.ticker: '<symbol>' looks like forex at config-load. A symbol containing / isn’t served under the default provider = "finnhub" — set provider = "twelvedata" on that widget/source instead (see Multi-asset via Twelve Data), or remove the symbol.

Haven’t tried it yet? Try it in demo mode above takes about two minutes, no key and no network. From there, the Plugins page has the full catalog entry alongside the rest of the plugins. Implementation notes and the layout design handoff live in the stocks package README if you want to go deeper.
