storefront plugin

The storefront plugin is provided by the storefront package in the led-ticker-plugins monorepo. It paints an always-visible OPEN or CLOSED badge as a corner overlay on top of whatever the ticker is showing, flipped by a weekly business-hours schedule and the Pi’s clock — no external service, works offline.

It’s the sibling of the core busy light overlay: same mechanism (a frame overlay hook + a background poller that flips shared state; paint() stays paint-only), richer content — text, colors, orientation, animated “neon” color.

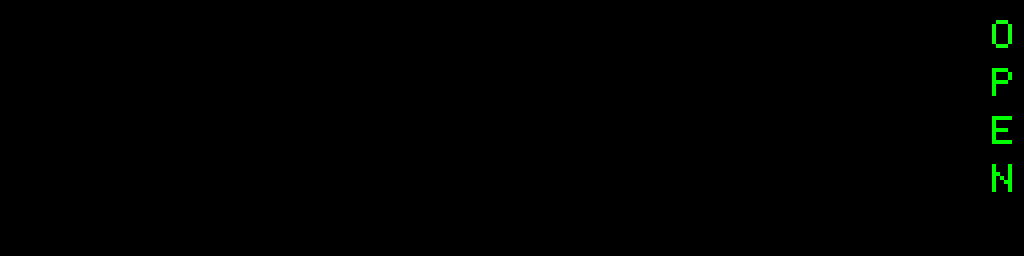

OPEN: a shimmering green vertical badge in the top-right corner, composited over a scrolling rainbow ticker message.

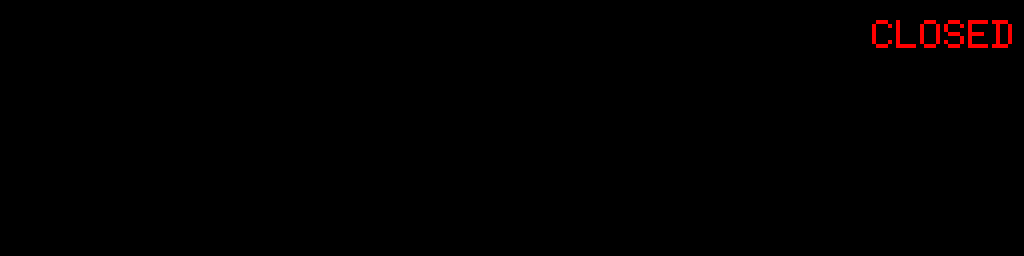

CLOSED: an opaque red horizontal badge, same corner, same underlying ticker content.

Install

Add the package to your plugin manifest and restart:

# First plugin? Create your manifest from the example:
cp -n config/requirements-plugins.example.txt config/requirements-plugins.txt
# Add the package (one name per line), then restart:
echo "led-ticker-storefront" >> config/requirements-plugins.txt
docker compose restart

Other install paths (web UI Store tab, dev checkout) are on the Plugins page.

Minimal config

Unlike a widget, storefront isn’t added to a playlist section — it’s a top-level [storefront] block, present anywhere in config.toml:

[storefront]
corner = "top_right"

[storefront.open]
text = "OPEN"
color = [0, 255, 0]

[storefront.closed]
text = "CLOSED"
color = [255, 0, 0]

[storefront.schedule]
mon = "09:00-17:00"
tue = "09:00-17:00"
wed = "09:00-17:00"
thu = "09:00-17:00"
fri = "09:00-17:00"
sat = "10:00-14:00"
# sun omitted = closed all day

The badge appears the moment the config loads (an eager first evaluation runs at startup, before the first poll), and flips automatically as the clock crosses a schedule boundary.

Schedule syntax

Read this one first. An overnight range belongs to the day it starts on, not the day it ends on — this is the single most common thing to get wrong, so it’s the leading example.

[storefront.schedule]
fri = "18:00-02:00"

This means Friday 18:00 through Saturday 02:00. The wrap belongs to Friday — at Saturday 00:30 the sign still reads OPEN, evaluated against Friday’s range. It does not flip to CLOSED just because the calendar date rolled over to Saturday.

Each day of the week (mon … sun) maps to a schedule string:

A single range: "09:00-17:00" — 24-hour HH:MM-HH:MM.
Multiple ranges (e.g. a lunch closure): "09:00-12:00,13:00-17:00" — comma-separated; the day is open if any range matches.
Closed: "closed", or simply omit the day key — both mean closed all day.
Open all day: "00:00-24:00" — 24:00 (1440 minutes) is only valid as a range end, meaning end-of-day.
Overnight wrap: a range whose end is less than or equal to its start ("18:00-02:00") crosses midnight and belongs to its start day, per the caution above.

Exceptions

Override specific dates — a holiday, a special event, a one-off closure — without touching the weekly [storefront.schedule]:

The overnight-wrap rule applies to exception days too. A range whose end wraps past midnight still belongs to its start day, even when the following calendar day is itself an exception:

[storefront.schedule]
fri = "18:00-02:00"

[storefront.exceptions]
"2026-12-26" = "closed"   # the Saturday after

Friday 18:00-02:00 + a "closed" Saturday exception still reads OPEN at Saturday 00:30 — the wrap is evaluated against Friday’s range, and the calendar rolling over to a closed exception day doesn’t cut it short. Adjust Friday’s hours (e.g. drop the wrap, or shorten it to "18:00-24:00") for a hard midnight cutoff.

[storefront.exceptions]
"12-25"      = "closed"          # recurring: every Christmas
"2026-11-26" = "closed"          # one-off
"12-24"      = "09:00-13:00"     # recurring short day
"2026-12-31" = "20:00-02:00"     # special hours; wraps allowed

Keys are "MM-DD" (recurring — matches that date every year) or "YYYY-MM-DD" (one specific date, zero-padded); values reuse the same day-string grammar as the weekly schedule ("closed", a single range, comma-separated multiple ranges, "00:00-24:00").

Precedence is specific date > recurring date > weekly day — a matching exception key replaces that day’s hours outright; it never merges with the weekly schedule underneath it. Quoting the keys is optional — TOML accepts them bare too (12-25 = "closed").

Every open/closed flip logs an enriched line naming the next change, so you can confirm an exception took effect without waiting for the next boundary:

storefront: OPEN (matched mon 09:00-17:00; closes 17:00; now 12:30 America/New_York)
storefront: CLOSED (no matching range; opens 09:00 tomorrow; now 20:15 America/New_York)

Full config reference

[storefront]
background  = [0, 0, 0]
padding     = 2
# font       = "..."
font_size   = 16
# timezone   = "America/New_York"
corner      = "top_right"
orientation = "horizontal"

[storefront.open]
text        = "OPEN"
color       = [0, 255, 0]
# corner and orientation fall back to the shared values above

[storefront.closed]
text        = "CLOSED"
color       = [255, 0, 0]

[storefront.schedule]
# mon = "09:00-17:00"  ...one key per weekday (mon..sun); see above

[storefront.exceptions]
# "12-25" = "closed"  ...one key per date override ("MM-DD" or "YYYY-MM-DD"); see above

Field	Type	Default	Notes
`background`	`[r, g, b]` or `"none"`	`[0, 0, 0]`	Opaque box behind the text. `"none"` paints only lit glyph pixels over live content (transparent).
`padding`	int	`2`	Pixels of background box around the text. Only visible with an opaque background.
`font`	string	bundled default	BDF font name or hi-res font name. Hi-res is supported on the bigsign.
`font_size`	int	`16`	Real (physical) pixels — block-scaled for BDF, native size for hi-res. See Sizing on large panels for the vertical-badge cap.
`timezone`	string (IANA name)	system local clock	e.g. `"America/New_York"`. See Caveats.
`corner`	`top_left` / `top_right` / `bottom_left` / `bottom_right`	`"top_right"`	Shared default corner for both badges. Same four-value vocabulary as busy light.
`orientation`	`horizontal` / `vertical`	`"horizontal"`	Shared default orientation for both badges.
`[storefront.open].text`	string	`"OPEN"`
`[storefront.open].color`	`[r, g, b]` / string / table	`[0, 255, 0]` (green)	Flat color or a color provider — see Neon glow.
`[storefront.open].corner`	corner value	inherits shared `corner`	Only set this to split the two badges into different corners.
`[storefront.open].orientation`	orientation value	inherits shared `orientation`
`[storefront.closed].text`	string	`"CLOSED"`
`[storefront.closed].color`	`[r, g, b]` / string / table	`[255, 0, 0]` (red)
`[storefront.closed].corner`	corner value	inherits shared `corner`
`[storefront.closed].orientation`	orientation value	inherits shared `orientation`
`[storefront.schedule].<mon..sun>`	schedule string	omitted = closed	See Schedule syntax.
`[storefront.exceptions].<key>`	schedule string	omitted = no exceptions	Key is `"MM-DD"` (recurring) or `"YYYY-MM-DD"` (specific); value is a schedule string. Replaces the weekly day outright. See Exceptions.

background, padding, font, font_size, and timezone are shared between the two badges — there’s no per-state override for those (a documented future).

Layout notes

Corner anchoring: the badge’s bounding box (text extent + padding) anchors flush to its corner, same vocabulary as busy light’s four corners.
orientation = "horizontal" draws the word on one line. orientation = "vertical" stacks each character upright, one per row, centered in the column — good for a narrow strip down the edge of the panel.
Opaque vs. transparent background: the default background = [0, 0, 0] paints a solid box first for a clean reserved-strip look. Set background = "none" to paint only the glyph pixels directly over whatever else is on screen.
Hi-res fonts and font_size: a hi-res font paints at its native real-pixel size; a BDF font block-scales up to font_size. See Sizing on large panels for the vertical-badge ceiling and how to get past it.
Large hardware panels (bigsign): the plugin’s own examples/*.bigsign.toml smoke fixtures use a simplified single-canvas [display] block for render-demo GIFs — they are not a wiring reference. For the real 8-panel chain and pixel_mapper_config, see config/config.bigsign.example.toml in the core repo.

Sizing on large panels

The badge computes its bounding box (text extent + padding) before drawing and, if it doesn’t fit the panel, logs a warning and skips the draw entirely rather than rendering a clipped or garbled badge:

storefront: badge 'OPEN' (16x64) does not fit the 64x32 panel at font_size=16; skipping. Use a smaller font_size or a shorter label.

The trap this catches most often: vertical orientation + a large font_size + the default BDF font, on a 64px-tall bigsign. BDF block-scales in whole-cell-height multiples, so a multi-letter word like OPEN stacked vertically only fits up to roughly font_size = 16 on a 64px-tall panel — larger sizes overflow and get skipped. That ceiling is relative to the panel’s real height, not a fixed number: it’s the panel height that constrains BDF’s block-scale math, not font_size itself.

There is no font_size ceiling at all with a hi-res font — font = "Inter-Regular" (or any bundled/user hi-res font) paints at its native real-pixel size and isn’t bound by BDF’s cell-height math. This is verified directly: test_hires_badge_renders_on_large_panel in the plugin’s test suite draws a 64px hi-res badge on a 512×128 headless canvas and asserts it renders with no oversize warning — a size that would have been well past the BDF ceiling on a real bigsign. BDF badges at font_size 24 and 96 on that same large canvas also block-scale up without clipping (test_bdf_block_scale_badge_on_large_panel) — the constraint tracks panel height, not the font system.

So: if the skip-warning above fires and you actually want a large badge (rather than a smaller one), the fix it names — “a smaller font_size or a shorter label” — isn’t your only option. Switching to a hi-res font via font = "..." gets you the large badge you wanted instead of shrinking it.

Neon glow

color on either badge accepts a flat [r, g, b] or a color provider string/table ("shimmer", "rainbow", "color_cycle", or an inline table), animated once per frame via a shared frame counter — the badge visibly breathes or sweeps rather than sitting static.

Bare color = "shimmer" defaults to a dim gray-blue base — it won’t read as “green neon” out of the box. For a colored glow, use the table form and set an explicit base:

[storefront.open]
text  = "OPEN"
color = { style = "shimmer", base = [0, 255, 0], shimmer = "white" }

That pairs a green base with a white shimmer sweep — the effect the two bigsign smoke fixtures in the plugin’s examples/ directory use.

Caveats

Timezone / NTP dependency. All schedule comparisons happen against the configured timezone (or the system local clock if omitted). A wrong clock — bad timezone, missing NTP sync, a DST edge — produces a wrong badge, and it will look like a plugin bug rather than a clock problem. The startup log line always states the time the plugin thinks it is:
```
storefront: OPEN (matched mon 09:00-17:00; closes 17:00; now 14:23 America/New_York)
storefront: CLOSED (no matching range; opens 09:00 tomorrow; now 18:05 America/New_York)
```
and logs again on every state flip — if the badge looks wrong, check this line before anything else.
No led-ticker validate coverage. validate only checks playlist widgets, not top-level plugin overlay blocks. A malformed [storefront] block (bad time string, unknown corner/orientation, unknown weekday key, a badge too large for the panel) is caught at startup instead: the error is logged, plugin-load isolation disables the badge, and the rest of the panel keeps running undisturbed.
Not covered by config hot-reload. The plugin reads its [storefront] block once at startup, so editing it while the display is running does not take effect — hot-reload reports “restart required” and names the storefront block; restart the process to apply the change.
